Type

Description

Materials

Temperature in °C

Pressure in bar / MPa

Sliding speed in m/s

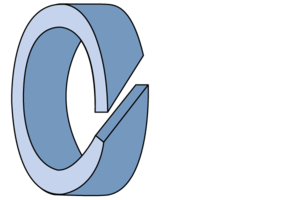

FR-1

Guide ring for piston slanted slotted, system pressure is passed on to seal passed on

PTFE-bronze

Hard fabric

POM glass

 -60 to 200

-50 to 130

-30 to 110

15

350

35

15

1

1

FR-2

Guide ring for pistons slotted at an angle, system pressure is passed on to seal passed on

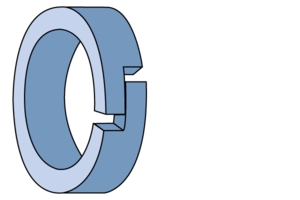

FR-3

Guide ring for pistons z-slotted, closed guide element, can be used as sealing and guide element

On request

On request

On request

On request

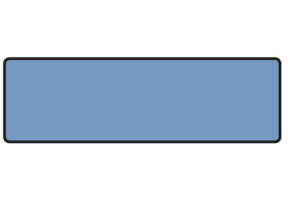

FBZ

Guide band cut oblique 30° or 45° straight 90° step cut

PTFE-bronze

-60 to 200

15

15

FBM

Guide tape by the meter

PTFE-bronze

-60 to 200

15

15
