Radial seals

Type

Profil

Description

Materials

Temperature

in °C

Pressure in bar / MPa

Sliding speed

in m/s
RRD-1



Radial seal internal sealing for rotary and swivel movements

PTFE-carbon graphite
O-ring NBR
O-ring FKM



-30 to 100



-15 to 200







300 / 30





5

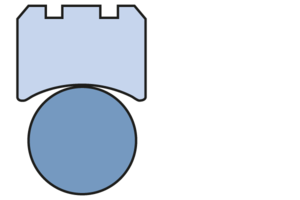

RRD-2



Radial seal external sealing for rotary and swivel movements



PTFE-carbon graphite,
O-ring NBR
O-ring FKM



-30 to 100

-15 to 200





300 / 30





5

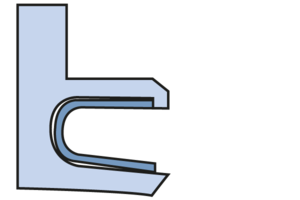

RRD-3



Radial seal with clamping flange, high chemical and thermal resistance

PTFE-carbon graphite
V-spring made of
stainless
steel

-100 to 200



150 / 15



 2
