Scraper
| Also other designs and materials available! | ||||||
Type | Profil | Description | Material | Temperature in °C | Pressure in bar / MPa | Sliding speed in m/s: |

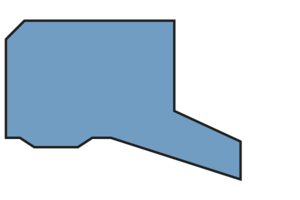

| AWS-1 |  | Scraper single acting | NBR TPU | -40 to 100 | 4 2 | |

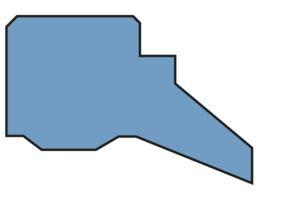

| AWS-2 |  | Scraper single acting | NBR TPU | -40 to 100 -40 to 100 | 4 2 | |

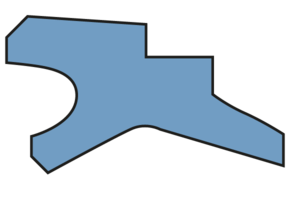

| AWS-D1 |  | Double wiper | NBR | -40 to 100 | 1 | |

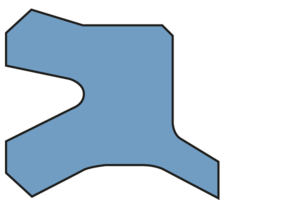

| AWS-D2 |  | Double wiper | NBR TPU | -40 to 100 -40 to 100 | 1 1 | |

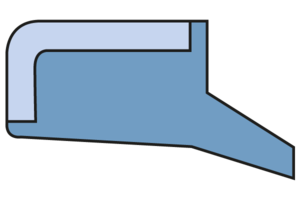

| AWS-3 |  | Scraper single acting with metal cage | NBR | -40 to 100 | 1 | |

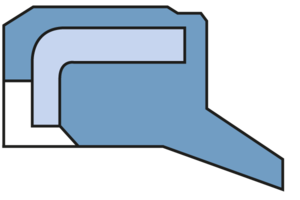

| AWS-4 |  | Scraper single acting with metal cage | NBR | -40 to 100 | 1 | |

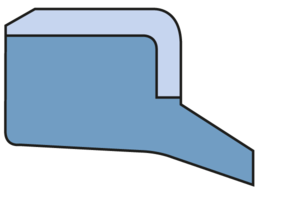

| AWS-5 |  | Scraper single acting with metal cage | TPU | -40 to 100 | 1 | |

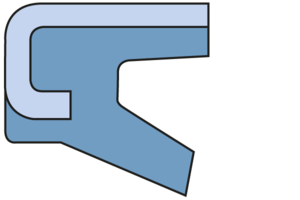

| AWS-6 |  | Scraper single acting with metal cage | TPU | -40 to 100 | 1 | |
| AWS-D3 |  | Double wiper with metal cage | TPU | -40 to 100 | 1 | |
| AWS-7 |  | Scraper single acting | PTFE-bronze O-ring NBR O-ring FKM TPU O-ring NBR |
-30 to 100 -15 to 200 -30 to 100 |
15 15 2 | |

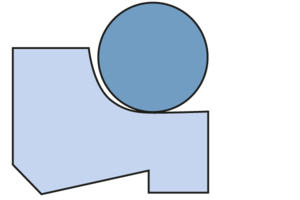

| AWS-D4 |  | Double wiper | PTFE-bronze O-ring NBR O-ring FKM TPU O-ring NBR |
-30 to 100 -15 to 200 -30 to 100 |
15 15 2 | |

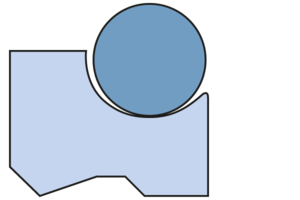

| AWS-D5 |  | Double wiper | PTFE-bronze O-ring NBR O-ring FKM TPU O-ring NBR |
-30 to 100 -15 to 200 -30 to 100 |
15 15 2 | |

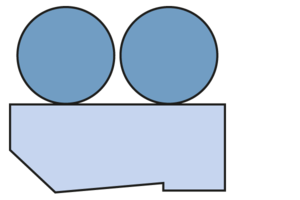

| AWS-D6 |  | Double wiper | PTFE-bronze O-ring NBR O-ring FKM |
-30 to 100 -15 to 200
|
5 5 | |
